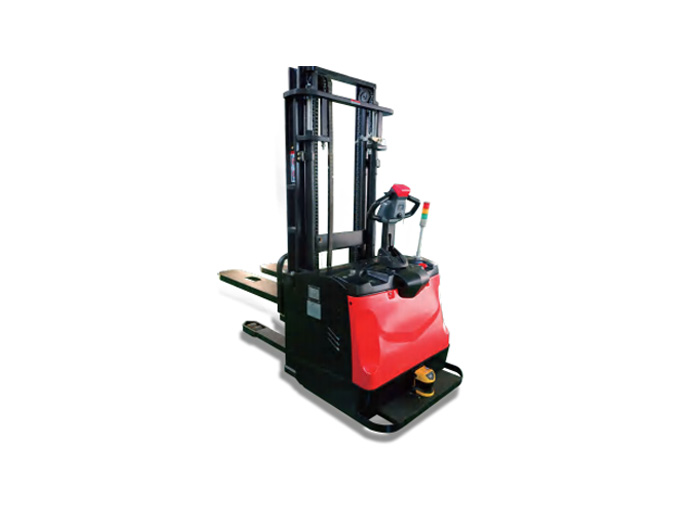

model | AGV-ES16-RS |
project | Parameter Description |
model | AGV-ES16-RS | Guidance form | Magnetic stripe/laser |
Load | 1600kg | Load center distance | 600mm |
Carrying length | 690mm | Wheelbase | 1145mm |
Weight (including battery) | 985kg | Axle load, fully loaded drive end/load end | 1642/843kg |
Axle load, no-load drive end/load end | 676/309kg | Tyre type, driving wheel/loading wheel | PU/PU |
Drive wheel size (diameter×width) | Φ230×75mm | Bearing wheel size (diameter×width) | Φ85×70mm |
Balance wheel size (diameter×width) | Φ130×55mm | Number of driving wheels, balance wheels/loading wheels | 1X+1/4mm |
The lowest height after the mast is lowered | 1962mm | Free lift height | 100mm |
Maximum lifting height of mast | 2700mm | The height of the whole vehicle when the mast is lifted the highest | 3400mm |
The height of the fork surface after the fork is lowered | 88mm | Vehicle length | 2220mm |
Vehicle width | 900mm | Fork size | 60/200/1150mm |
The tray is 1200 wide x 1000 long aisle width | 685mm | Outer width of fork | 2650mm |
The tray is 800 wide x 1200 long aisle width | 2620mm | Turning radius | 1800mm |
Parking accuracy, magnetic stripe/laser | 20/10mm | Lifting accuracy, magnetic stripe/laser | 10/5mm |
Walking speed, magnetic stripe/laser | 0.7~1/1~1.5m/s | Lifting speed, fully loaded/unloaded | 0.18/0.22m/s |
Braking type | electromagnetic | Obstacle avoidance type | Machinery & Electronics |
Drive motor rated power S2 60 minutes | 1.5kw | Lifting motor rated power S3 15% | 3kw |
Battery voltage/capacity | 24/210V/Ah | Drive control type | 24/210V/Ah |
Steering type | electronic | Noise level | 74 |
